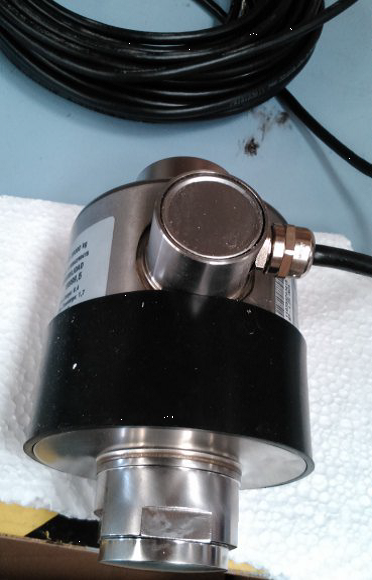

Compression Type Load Cell
A compression-type load cell is a type of sensor used to measure compression or force applied to it. It is commonly used in industrial and engineering applications to monitor and measure forces in various systems. Compression load cells are typically made of metal and consist of a sensing element, strain gauges, and a housing. The sensing element is designed to deform when a force is applied, and the strain gauges, which are bonded to the sensing element, measure this deformation. The strain gauges change their electrical resistance as they stretch or compress, providing an electrical signal proportional to the applied force. The housing of the load cell is designed to support the sensing element and protect it from external influences. It also includes mechanical features such as mounting holes or threads for easy integration into a system. Compression load cells are available in various capacities, ranging from a few pounds to several hundred tons. They can be used in a wide range of applications, including weighing scales, material testing machines, force measurement in industrial processes, and more. When using a compression load cell, it is essential to consider factors such as the load capacity, accuracy, environmental conditions (such as temperature and humidity), and calibration requirements to ensure accurate and reliable measurements.
